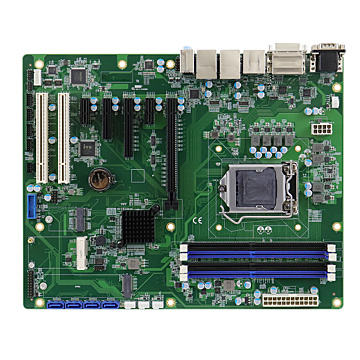

MB997

Tuotenro
MB997AFS-C246
Toimitusaika 21-30pv
  • 9th Gen Intel® Xeon® E/ Core™ i7/i5/i3 processors
  • 4x DDR4 DIMM, Max. 64GB
  • Intel® processor integrated graphics supports HDMI (2.0a), DVI-D, and DisplayPort
  • Dual Intel® Gigabit LAN
  • 6x USB3.1, 2x USB 2.0, 4x SATA 3.0, 6x COM
  • 1x PCI-E (x16), 1x PCI-E(x8)(Gen3.0), 1x PCI-E(x4), 2x PCI-E(X1), 2x PCI
  • Watchdog timer, Digital I/O, iAMT (11.6), TPM(2.0), iSMART (4.0)
Form Factor
Form Factor ATX


System
Processor 9th Gen Intel® Xeon® E/ Core™ i7/i5/i3 HC/QC/DC processors, up to 5.0GHz
Socket : LGA1151
Integrated Graphics 9th Gen Core i7/i5/i3 processors integrated
Security Hardware
Chipset
Storage 1x M.2 (M2280) NVMe
4x SATA III
Storage Support
Memory 4x DDR4-2666 / 2400 MHz, Max. 128GB
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0
USB 3.1 4 x USB3.2
Serial 4 xRS-232
2 xRS-232/422/485
Nuvoton NC T6686D-T
Video 1 x DisplayPort
1 x DVI-D
1 x HDMI
Ethernet 2 x 10/100/1000 Mbps
Other Ports Audio
DIO
Expansion
Expansion Interface 1x PCI-E (X16)
1x PCI-E (x8)
1x PCI-E (x4)
2x PCI-E (x1)
2x PCI

1x MiniPCI-E
1x M.2 (M-Key, type:M2280)
1x M.2 (E-Key, type: E2230)
Operating System
Operating System WIN10
Power
DC Input / Source Voltage ATX
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 305mm x 244mm
Certification
Certification CE
Lisätietoja
Valmistaja iBASE
Socket LGA 1151
Form Factor ATX
