MEC-CAN-2814i
Tuotenro
MEC-CAN-2814i
Toimitusaika 21-30pv

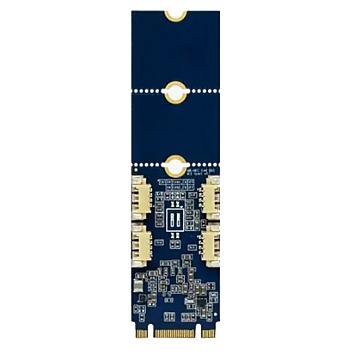

Industrial M.2 PCIe CAN Bus Expansion Card (-40℃~+85℃)
- Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev. 2.0
- Meet the Requirements of the ISO 11898 High Speed Standard
- CAN bus 2.0B EFF backward compatible with 2.0A SFF
- Support baud rate 10/20/50/100/125/250/500/800/1000K
- Support CAN message acceptance filter
- Support 2.5kV isolated per port
| Processor | |
| Interface | M.2 PCIe Rev2.0 |
| Controller | 2x Fintek F81601 |
| BUS | PCI Express 2.0 x1, M.2 2242/2260/2280, Key B+M Male |
| IRQ & IO | |
| ESD Protection | ±15KV on board |
| CAN Communication | 4x CAN bus 2.0 A/B |
| 4-Channel | |
| Data bitrate | up to 1Mbs |
| Software | Win 7, Win 10, Win 11, Linux 3.4+ |
| PCB Dimension | 22x42/60/80mm |
| I/O | CAN bus |
|---|---|
| Valmistaja / Brand | Cervoz |
| Connection | M.2 |
