1x USB 3.2 Ports, Type-C, Mec-module
Tuotenro
MEC-USB-2002C
Toimitusaika 21-30pv

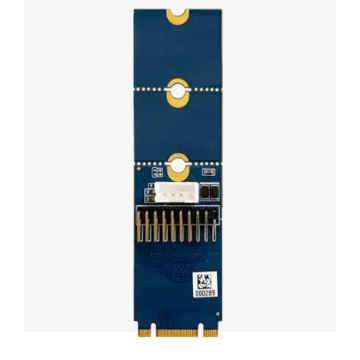

Industrial M.2 (B+M key) PCIe USB Expansion Card
- Single-Line PCI-Express with throughput to 5.0/2.5 GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.0
- Support simultaneous operation of multiple USB 1.1, USB 2.0, and USB 3.2 GEN1x1 devices
- Support individual USB devices running 5Gbps at full speed
- USB data transfer rate of 1.5/12/480/5000 Mbps

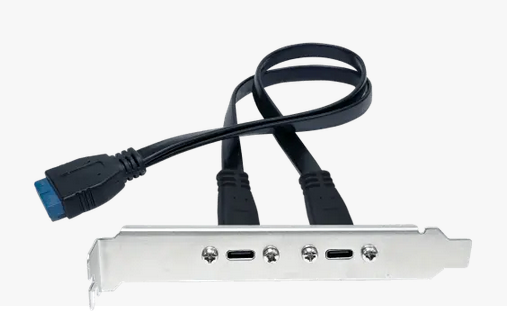

- With Type-C cable
| USB Interface | |
| USB Standards | USB 3.2 |
| Speed | 5 Gbps |
| Form factor |

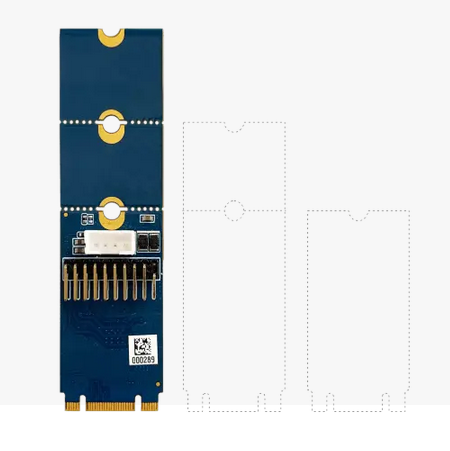

M.2 2242/2260/2280 (B+M key) |
| No. of USB Ports | 1x USB3.2 Type-C |
| Controller | Renesas (NEC) μPD720202K8-701-BAA-A x1 |
| Bus |
PCI-Express with throughput up to 5.0/2.5 GT/s |
| Power Parameters | |
| Power Consumption |
198mA@3.3V
|
| USB Power | 5V@1000A |
| Physical | |
| Dimensions | 22.00 x 42.00 / 22.00 x 60.00 / 22.00 x 80.00 |
| Operating Temperature | 0 to 70°C |
| Storage Temperature | –40°C ~ 95°C |
| Valmistaja / Brand | Cervoz |
|---|
