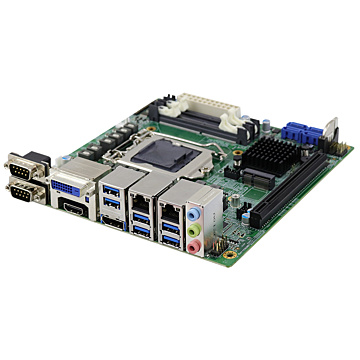

MI999AF-W
Tuotenro
MI999AF-W
Toimitusaika 21-30pv
- 10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® processors, up to 4.8GHz
- 2x DDR4 SO-DIMM, Max. 64GB
- Intel® Processor integrated graphics, supports DVI-D, HDMI, DisplayPort and 24-bit dual channel LVDS
- Dual Intel® Gigabit LAN
- 6x USB3.2, 4x USB2.0, 4x COM, 4x SATA III
- 1x PCI-E (x16), 2x M.2 (E-key, M-Key)
- Watchdog timer, Digital I/O, iAMT (14), TPM (2.0)
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | 10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron®
processors, up to 4.8GHz Socket : LGA1200 |
| Integrated Graphics | Intel® UHD Graphics 630 |
| Security Hardware | |
| Chipset | |
| Storage | 1x M.2 (M2280) NVMe 4x SATA III |
| Storage Support | |
| Memory | 2x DDR4 SO-DIMM socket, Max 64GB |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 6 x USB3.2 |
| Serial | 2 xRS-232 2 xRS-232/422/485 |
| Video | 1 x DisplayPort 1 x DVI-D 1 x HDMI EDP or LVDS |
| Ethernet | 2 x 10/100/1000 Mbps |
| Other Ports | Audio DIO |
| Expansion | |
| Expansion Interface | 1x PCI-E (X16) 1x M.2(E-key@2230), supports CNVi 1x M.2(M-key@2280), supports NVMe |
| Operating System | |
| Operating System | WIN10 |
| Power | |
| DC Input / Source Voltage | ATX |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | iBASE |
|---|---|
| Socket | LGA 1200 |
| Form Factor | Mini-ITX |
