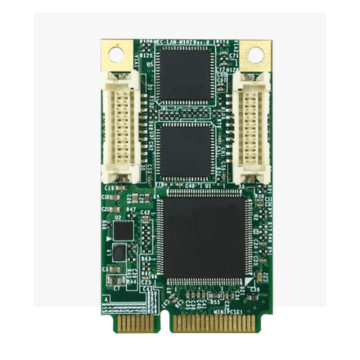

Mini-PCIe Module with 2x Gbe Ethernet LAN
Tuotenro
MEC-LAN-M102-30
Toimitusaika 21-30pv
156,88 EUR 125,00 EUR
Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
- Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5Gbps
- Fully compliant with PCI-Express Base Specification Rev 2.0
- Integrated 10/100/1000Mbps transceiver
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z compliant
- IEEE 802.3x Full-Duplex flow control
| System | |
| Controller | Intel chip i210 x2 |
| Connector | 2x RJ45 |
| Bus Type | Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps |
| Card Slot Interface | Mini-PCIe |
| Data rate | 10/100/1000Mbs |
| Cooling method | Passive Heatsink |
| PoE Power/port | - |
| Physical Characteristics | |
| Dimensions | 30.00 x 50.95mm |
| System Support | |
| Windows 7/10 | |
| Environmental | |
| Operating Temperature | -40°C ~ 85°C |
