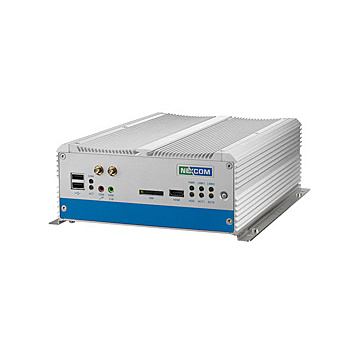

NISE 3520

NISE 3520
Poistunut valikoimasta
Intel® Core i7/i5 Fanless System with Mini-PCIe socket, Wireless Interface, HDMI and one Expansion Slot
* Support Intel® Core i7/i5 socket processor
* Mobile Intel® QM57 PCH
* Dual Intel® Gigabit Ethernet ports
* Dual VGA or VGA/DVI or DVI/HDMI Independent Display
* 3 x RS232 and 1 x RS232/422/485 with Auto Flow Control
* 1 x Mini-PCIe socket with mobile interface and one external SIM card holder
* On-board DC to DC power design to support 9V to 30V DC power input
* Support ATX power mode and PXE / WOL
Pakkaus sisältää
NISE 3520

*230V AC Power adapter
Processor Intel® Core i7/i5
CPU Performance
Security Hardware
Chipset Intel® QM57
Storage 1 x 2.5" SATA HDD drive bay
1 x mSATA
Storage Support
Memory 2x 240-pin DIMM, up to 4GB DDR3 800/1066 MHz SDRAM
Graphics 1 x VGA
I/O Ports
USB 2.0 6 x USB 2.0
USB 3.0
Serial 1 x RS-232/422/485
1 x RS-232
Video 1 x VGA
1 x DVI-I
1 x HDMI
Ethernet 2 x Intel Gigabit Ethernet ports, RJ-45
Other Ports 1 x Speaker-out
1x Mic-in
1 x PS/2 for Keyboard / Mouse
Expansion Interface 1 x PCI
1 x PCI Express Mini Card
1 x External SIM card holder
Operating System
Operating System Windows 7
DC Input / Source Voltage 9-30V DC Input in system
230V AC adapter
Operating Temperature
Operating Temperature Operating Temperature -20°C to 70°C, with Wide-Temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.0kg
Dimensions 195mm (W) x 268 mm (D) x 80mm (H)
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Extra Features
Certification CE
