CV-W121C 21.5" TFT, PCAP touch

Tuotenro
cv-w121C_module
Varastossa

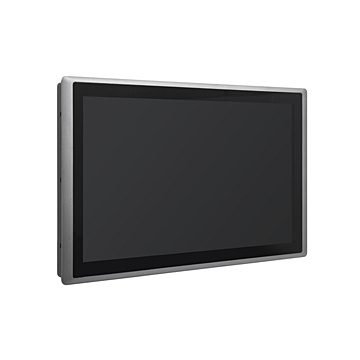

21.5" TFT Full HD 16:9 Display Module with PCAP Touch

  • 21.5" TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1920 x 1080 (Full HD)
  • 300 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP65 Compliant Front Panel
  • Convertible Display System (CDS) Supported

Spesifikaatiot
Display
Screen Size 21.5" TFT LCD
Screen Resolution 1920x1080 (FHD)
Display Ratio 16 ::9
Contrast Ratio
Brightness 300 nits
Viewing Angle 178/178
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch) --> CV-W121C
Resistive 5-wire (Single touch) --> CV-W121R
GLASS --> CV-W121G
I/O Ports
Video According to CDS module
Other Ports
Operating Temperature
Operating Temperature -0ºC to 60ºC
Humidity Range 10% to 95% non-condensing
Dimensions / Weight
Weight (kg) 7,0 kg
Dimensions 550 x 330 x 63,2 mm
Enclosure
Bezel IP65 front panel, flat surface
Material Aluminum
Mounting by CDS module
Note *
Certification
Certification CE / FCC
Lisätietoja
Näytön koko21.5"
Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
Näytön signaali (input)CDS
