PPC-324W-P7

Tuotenro
PPC-324W-P7
Toimitusaika 21-30pv

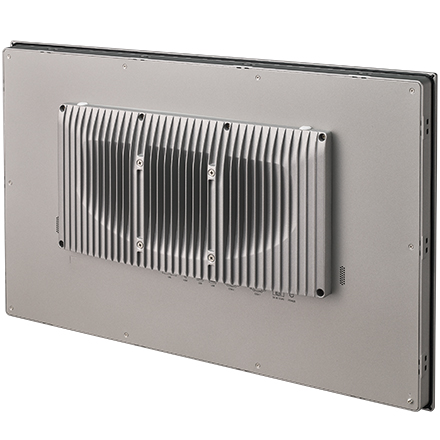

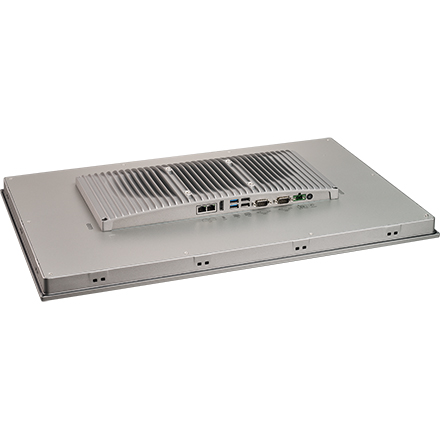

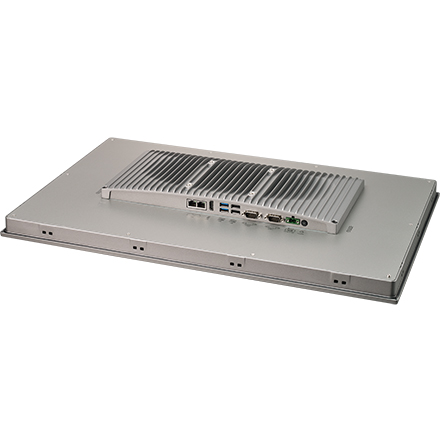

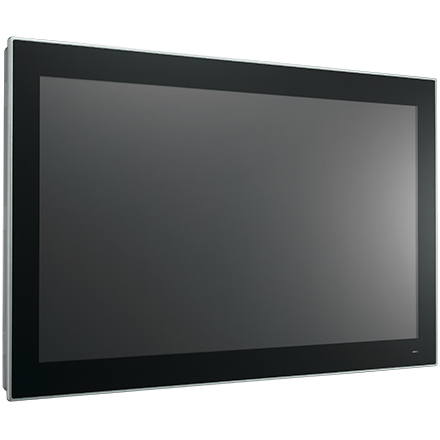

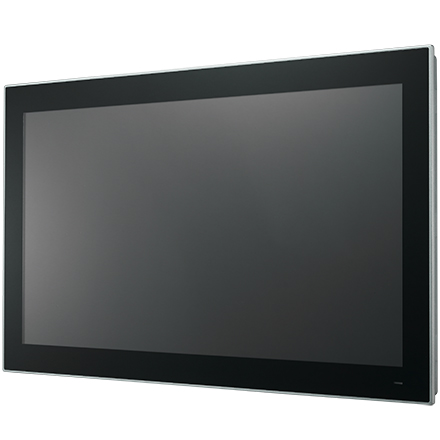

23.8" Fanless Panel PC with Intel® Core™ i Processor

  • Industrial-grade 23.8" LCD panel with 30k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive control
  • High-performance, fanless 7th generation Intel® Core™ i processor
  • Up to 16 GB DDR4 SDRAM
  • Compact, fanless design with aluminum alloy enclosure
  • IP65-rated front panel
  • Supports dual displays (1 x external HDMI)
  • Supports full-size mini PCIe expansion & USB 3.0
Muokkaa PPC-324W-P7
PPC-324W-P7

* Pakolliset kentät

Tuote
PPC-324W-P7
PPC-324W-P7

0,00 EUR

Yhteenveto
    System
    Processor Intel Core i5-7300U


    Memory 1 x SODIMM, DDR4 max 16GB
    Chipset SoC
    Storage 1 x 2.5" SATA HDD Bay
    1 x mSATA
    Expansion 1 x Full-size PCI Express Mini Card slot


    Display
    Screen Size 23.8" TFT LCD
    Screen Resolution 1920*1080
    Display Ratio wide
    Contrast Ratio 1000
    Brightness 350 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2x USB3.0
    Serial 1 x RS-232
    1 x RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports 1 x Line-out
    Operating System
    Operating System Windows 10
    Power
    DC Input / Source Voltage 12-24V DC
    Power Comsumption 80W
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 8.6 kg
    Dimensions 595mm x 374mm x 61.5mm
    Enclosure
    Protection IP65 Front
    Material
    Mounting Panel Mount, VESA


    Certification
    Certification CE / FCC
    Lisätietoja
    Jäähdytys Fanless
    Näytön koko 24"
    Kosketusominaisuuden tyyppi Projected Capasitive (PCAP)
