CV-W115FHR 15.6" TFT, Resistive touch
Tuotenro
CV-W115FHR
Toimitusaika 21-30pv

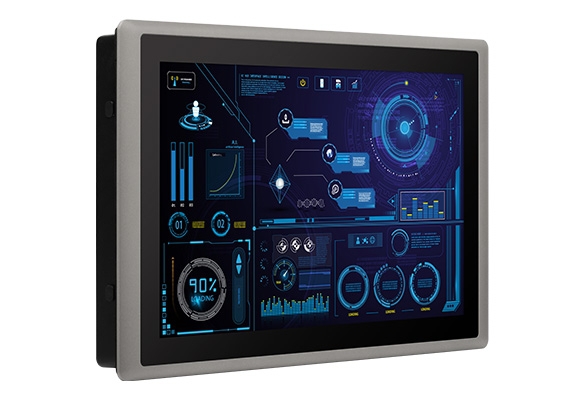

15.6" TFT-LCD FHD 16:9 Display Module with Resistive Touch
- 15.6" TFT FHD 16:9 LCD with Resistive 5-wire Touch
- 50,000 hrs LED Backlight Life
- Resolution up to 1920 x 1080 (Full HD)
- 350 nits Brightness
- Designed with Aluminum Die-cast Front Frame
- IP 65 Compliant Front Panel
- Convertible Display System (CDS) Supported
- Safety: UL, cUL, CB, IEC, EN 62368-1
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1920 x 1080 (FHD) |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 800:1 |
| Brightness | 350 nits |
| Viewing Angle | 178 / 178 degree |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) (C-model) Resistive 5-wire (R-model) |
| I/O Ports | |
| Video | According to CDS module (M-series monitor module or PC module) |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 70ºC |
| Humidity Range | 10% to 90% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 3.8 kg |
| Dimensions | 420 x 254 x 66 mm |
| Enclosure | |
| Bezel | IP65 front panel , Die-Casting flat surface |
| Material | Aluminium |
| Mounting | by CDS module |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A |
| Valmistaja / Brand | Cincoze |
|---|---|
| Näytön koko | 15.6" |
| Kosketusominaisuuden tyyppi | Resistive |
| Näytön signaali (input) | CDS |
