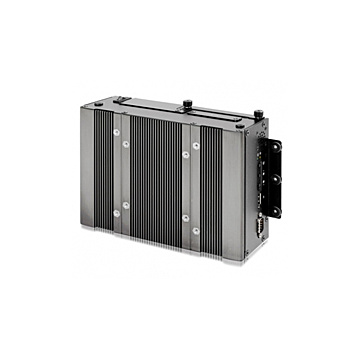

P1001E CDS PC Module
Tuotenro
P1001E
Toimitusaika 21-30pv
Intel® Atom E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal I/O Brackets, CDS interface
Ominaisuudet
* Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
* 1x DDR3L SO-DIMM max. up to 8GB
* 1x 2.5” SATA HDD bay, 1x CFast Card and 1x SIM Card Socket
* 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort
* 4x Isolated DI, 4x Isolated DO
* Wide Range Power Input 9~48VDC
* 1x Mini-PCIe Socket Expansion
* 2x Universal I/O Brackets Expansion
* Support Wall / VESA / CDS Mounting
* Convertible Display System (CDS) Supported
* Built-in Two 2W Internal Speakers
* 1x DDR3L SO-DIMM max. up to 8GB
* 1x 2.5” SATA HDD bay, 1x CFast Card and 1x SIM Card Socket
* 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort
* 4x Isolated DI, 4x Isolated DO
* Wide Range Power Input 9~48VDC
* 1x Mini-PCIe Socket Expansion
* 2x Universal I/O Brackets Expansion
* Support Wall / VESA / CDS Mounting
* Convertible Display System (CDS) Supported
* Built-in Two 2W Internal Speakers
Spesifikaatiot
| System | |
| Processor | Intel® Atom™ E3845, 1.91Ghz, Quad Core |
| CPU Performance | |
| Chipset | |
| Storage | 1 x 2.5” SATA3 bay |
| Storage Support | |
| Memory | 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket |
| Memory (RAM) | |
| I/O Ports | |
| USB 2.0 | 3x USB2.0 |
| USB 3.0 | 1x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x VGA 1 x DisplayPort 1 x CDS interface |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1, Mic-in x 1 8x Isolated DIO |
| Operating System | |
| Operating System | Windows 10 Pro, Windows 10 IoT, Linux |
| Power | |
| DC Input / Source Voltage | 9-48V DC 230V AC-DC adapter (Optional) |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x SIM card slot 1 x mPCIE 2 x Universal bracket |
| Operating Temperature | |
| Operating Temperature | -25ºC to 70ºC with wide-temp peripherals |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 205 x 150 x 60 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Wall-mount, VESA (with CDS display module) |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
