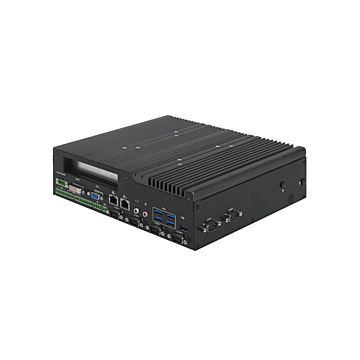

P2002E CDS PC Module, i5

Tuotenro
P2002E-i5
Toimitusaika 21-30pv
6th Generation Intel® Core™ U Series (Skylake) Fanless Computer with CFM and CDS Interface, PCI/PCIE slot
Ominaisuudet
* Onboard Intel® 6th Generation Core™ U Series Processor (15W)
* 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
* Advanced Graphics Engine Support Triple Independent Display
* 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
* 2x Full Size Mini-PCIe Socket
* Support CFM (Control Function Module) Technology
* Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module)
* Support Ignition Sensing Function (IGN) (with optional CFM module)
* Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
* Support Instant Reboot Technology
* Support CDS Technology for Convertible Panel PC
* Wide Operating Temperature (-25°C to 70°C)
* SuperCap integrated for Battery Maintenance-Free
Pakkaus sisältää
P2002E CDS PC Module
*Intel® Core™ i5-6300U processor
Spesifikaatiot
System
Processor Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i3-6100U processor (3M Cache, 2.30 Ghz)
CPU Performance
Security Hardware
Chipset SoC
Storage 2x 2.5” SATA HDD/SSD Bay
2x mSATA (shared by Mini-PCIe socket)
1x Cfast Socket (Gen3)
Memory 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB
Audio Realtek ALC888-GR
High Definition Audio
Graphics Integrated Intel® HD Graphics 520
Triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface
I/O Ports
USB 2.0 1 x USB2.0
USB 3.0 4x USB 3.0
Serial 6x RS-232/422/485
with Auto Flow Control (Support 5V/12V), DB9
Video 1x DVI-D
1x VGA
1x CDS Interface
Ethernet 2x GbE LAN , RJ-45

-with Optional CFM PoE Module:
2x PoE+ , IEEE 802.3at
Other Ports Mic-in/Line-out
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
1x Remote Power On/Off Connector
1x Remote Reset Connector
Expansion
Expansion Interface 1x CFM PoE interface
1x CFM IGN interface
2x Full-size Mini-PCIe Sockets
1x SIM Socket
1x Universal I/O Bracket
4x Antenna hole
1x PCI or 1x PCIex4 Expansion slot
** Support maximum dimension of add-on card
** (H x L): 100mm x 200mm
Operating System
Operating System Windows® 10, Windows® 7, Linux Kernel 4.4
Power
DC Input / Source Voltage Power Input Voltage 9~48VDC
Operating Temperature
Operating Temperature -25°C ~ +70°C with W.T. SSD, Memory
Shock/Vibration Shock: Operating, 50 Grms, Half-sine 11 ms Duration
Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 3.2 kg
Dimensions 254.5 x 220 x 72 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Display module with CDS
Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE
