CV-117C
Tuotenro
cv-117C
Toimitusaika 21-30pv

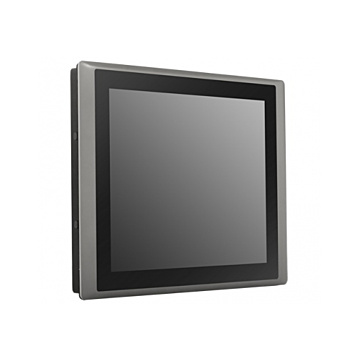

17" TFT XGA 4:3 Display Module with Projected Capacitive Touch
Ominaisuudet
* 17" TFT SXGA 5:4 LCD with Resistive 5-wire / Projected Capacitive Touch
* 50,000 hrs LED Backlight Life
* Resolution up to 1280 x 1024 (SXGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
* 50,000 hrs LED Backlight Life
* Resolution up to 1280 x 1024 (SXGA)
* 350 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
Spesifikaatiot
Display | |
Screen Size | 17" TFT LCD |
Screen Resolution | 1280x1024 (SXGA) |
Display Ratio | 4 ::3 |
Contrast Ratio | |
Brightness | 350 nits |
Viewing Angle | 160/140 |
Number of Colors | 16.7M |
Touch Screen | |
Touchscreen | Projected Capacitive (Multi-touch) Resistive 5-wire (Single touch) GLASS |
I/O Ports | |
Video | According to CDS module |
Other Ports | |
Operating Temperature | |
Operating Temperature | -0ºC to 60ºC |
Humidity Range | 10% to 95% non-condensing |
Dimensions / Weight | |
Weight (kg) | 5,6 kg |
Dimensions | 450 x 350 x 63 mm |
Enclosure | |
Bezel | IP65 front panel, flat surface |
Material | Aluminum |
Mounting | by CDS module |
Note * | |
Certification | |
Certification | CE / FCC |
Näytön koko | 17" |
---|---|
Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
Näytön signaali (input) | CDS |
