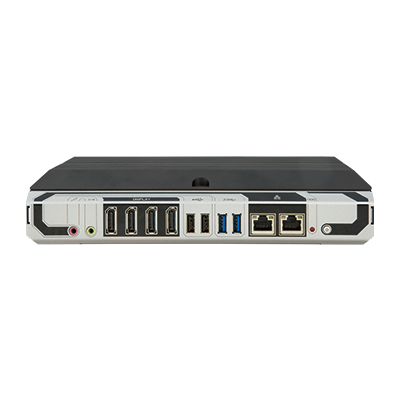

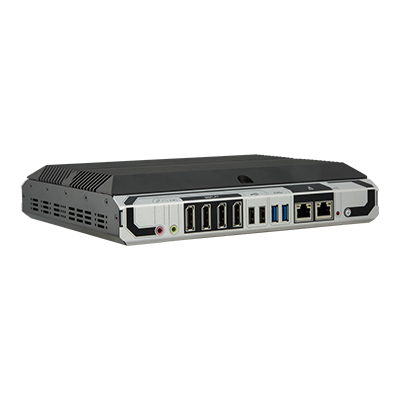

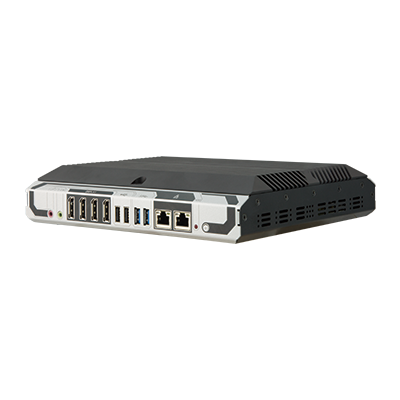

ELIT-1270

Tuotenro
ELIT-1270-1605
Toimitusaika 21-30pv
    4K Multiple Display Controller with AMD Ryzen™ Embedded V series APU
  • AMD Ryzen™ Embedded V1000 series APU
  • 2 x DDR4 SO-DIMM socket, dual channel, up to 2666 MHz Support
  • 4 x DisplayPort 1.2, up to 4K (UHD) resolution Support
  • 2 x USB 3.1 Gen1 and 2 x USB 2.0
  • 1 x M.2 2242/ 2280 M-Key for storage
  • 1 x mPCIe slot for connectivity expansion
Muokkaa ELIT-1270
ELIT-1270

* Pakolliset kentät

Tuote
ELIT-1270
ELIT-1270

0,00 EUR

Yhteenveto
    System
    Processor AMD Ryzen™ Embedded V1000 series (SOC FP5) APU up to 54W TDP
    CPU Performance AMD Ryzen V1605B
    Security Hardware
    Chipset AMD integrated SOC
    Storage 1 x M.2 2242/ 2280 M-Key slot (PCIe x4 + SATA III)
    Storage Support
    Memory 2 x 260-pin DDR4 SO-DIMM socket
    Graphics AMD Radeon™ Vega X Graphics
    I/O Ports
    USB 2.0 2x USB 2.0
    USB 3.0 2x USB 3.1 Gen1
    Serial 2x RS-232/422/485
    Video 4 x DisplayPort (1.2)
    Ethernet 2 x RJ45 GbE
    Other Ports 1x Audio Line-out
    1x Mic-in
    Operating System
    Operating System Windows 10 , Linux
    Power
    DC Input / Source Voltage DC 9~36V (4-pin terminal block)
    Power Management
    Expansion Slots

    1 x mPCIe slot (PCIe x1 + USB 2.0)
    Multimedia
    Integrated Speakers -
    Operating Temperature
    Operating Temperature -10ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Shock & Crash 10G peak acceleration (11 m sec. duration), operation
    30G peak acceleration (11 m sec. duration), nonoperation
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 3 kg
    Dimensions 240 x 204 x 50 mm
    Certification
    Certification CE / FCC
    Lisätietoja
    Jäähdytys Fanless
