FPC-9107-P6-G2
Tuotenro
FPC-9107-P6-G2
Toimitusaika 21-30pv

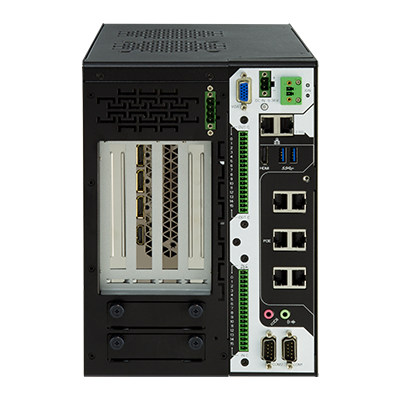

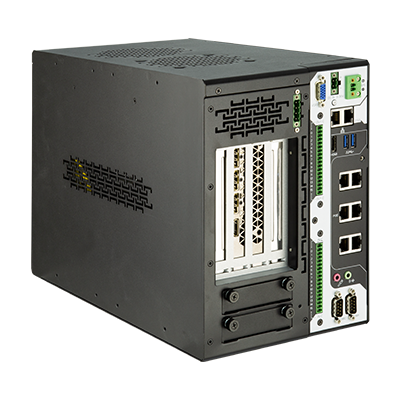

Ruggedized Edge AI Computing Platform supporting NVIDIA RTX 3070 GPU Card or Dual NVIDIA Tesla T4 GPU Cards, Intel 10th Gen Xeon Core™ Processor w/ 6 GbE PoE
- Intel 10th Gen (Comet Lake-S ) with W480E chipset

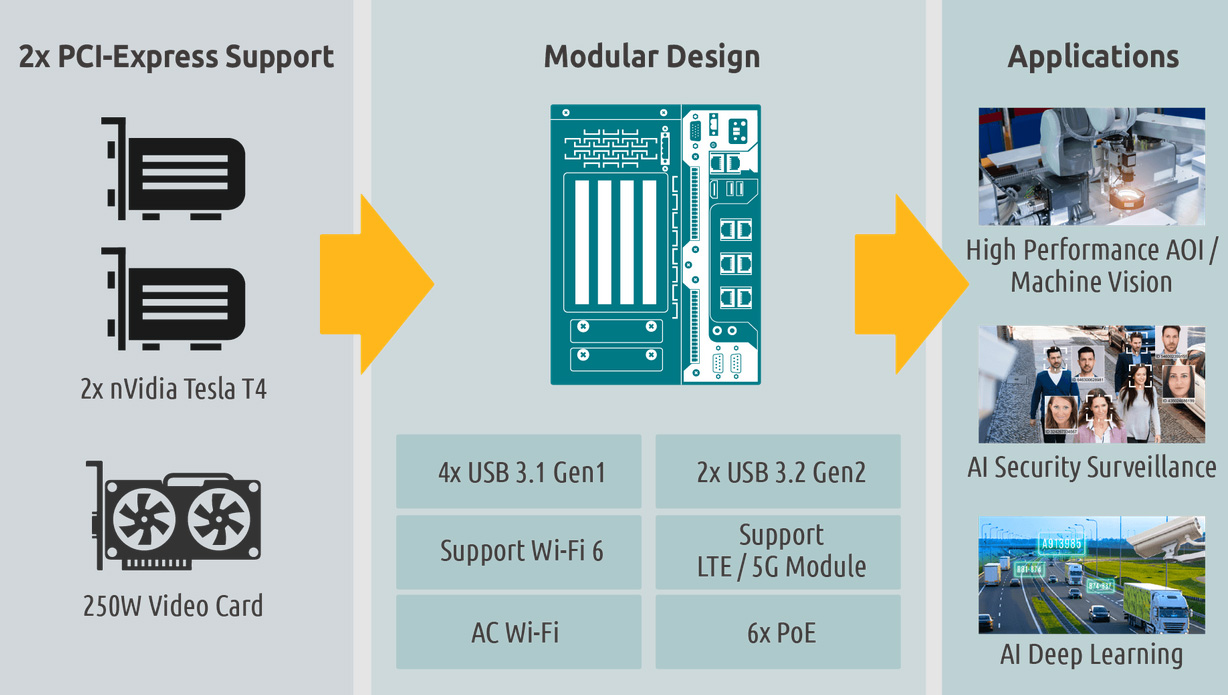

- Supports dual NVIDIA Tesla T4 GPU or RTX-30 series up to 250W GPU
- Wide Range DC power input (12~36V)
- HDMI x 1 +VGA x1 ( 2 independent display )
- Power on/off delay control/ Configurable ignition power control
- TPM2.0 support
- 2 x outside accessible SATA SSD, supporting RAID 0,1
- 2 x USB3.2 supports up to 10Gbps data transfer

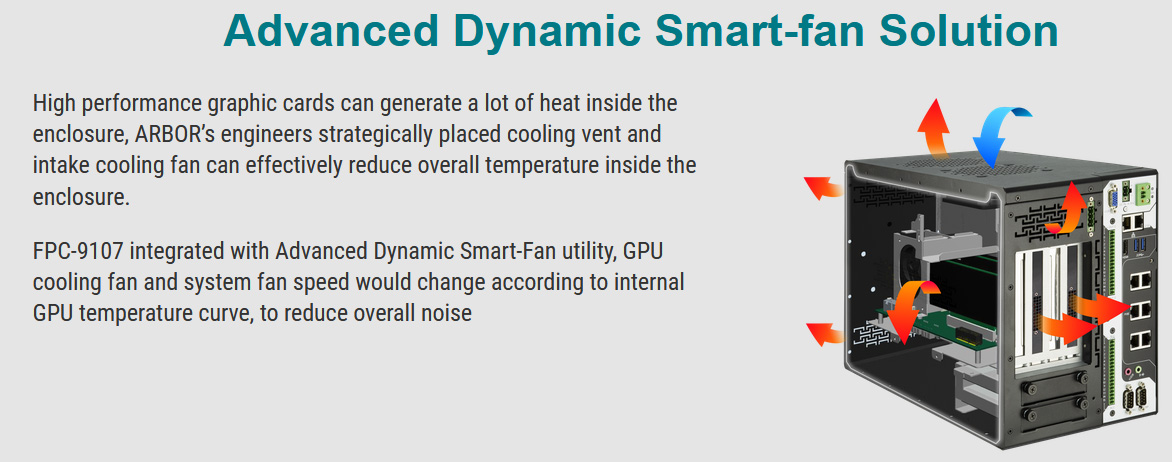

- Front-accessible I/O support SMART FAN control support
- 6 x 802.3af Gigabit PoE ports
- 1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
- 1 x M.2 (NGFF) E-Key(2230) socket for Wi-Fi / BT
| System | |
| Processor | 10th generation Intel® Xeon® Core™ i9/i7/i5/i3 processor in LGA1200 socket |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® W480E Chipset |
| Storage | 2 x Serial ATA ports with 600MB/s HDD transfer rate 2 x 2.5” drive bays (outside accessible) |
| Storage Support | |
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 ( i9/ i7 CPU)/2666( i5/ i3 CPU)/2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC) |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 (internal) |
| USB 3.2 | 2 x USB 3.2 (10Gbps) |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x HDMI 1 x VGA |
| Ethernet | 1 x RJ-45 ports for 2.5GigE 1 x RJ-45 ports for GbE 6 x RJ-45 ports for GbE PoE (Power budget 60W) |
| Other Ports | Mic-in/Line-out 16 x DI 16 x DO |
| Expansion | |
| Expansion Interface | 1 x mPCIE with SIM for optional Wi-Fi / BT / 3G / LTE
/ GPS (PCIe x 1+USB 2.0, Full Size) 1 x M.2 E key (2230) with PCIe x 1+USB2.0, for Wireless 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB 3.0 + SATA) with SIM for 5G / LTE expansion or for storage (either one) 2 x PCIe x16 slot (via x 8 lanes) or 1 x PCIe x16 slot (via x 16 lanes) 1 x PCIe x4 slot (power budget 25W) |
| Operating System | |
| Operating System | Windows® 10, Linux |
| Power | |
| DC Input / Source Voltage | Main Power Input: 12~36VDC Secondary Power Input: 12~36VDC for GPU card power Ignition Switch |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +70°C with W.T. SSD, 35W TDP CPU -20°C ~ +55°C with W.T. SSD, 65W TDP CPU -20°C ~ +50°C with W.T. SSD, 80W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.5 kg |
| Dimensions | 181 x 320 x 250 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE, FCC |
| Jäähdytys | CPU tuuletin |
|---|
